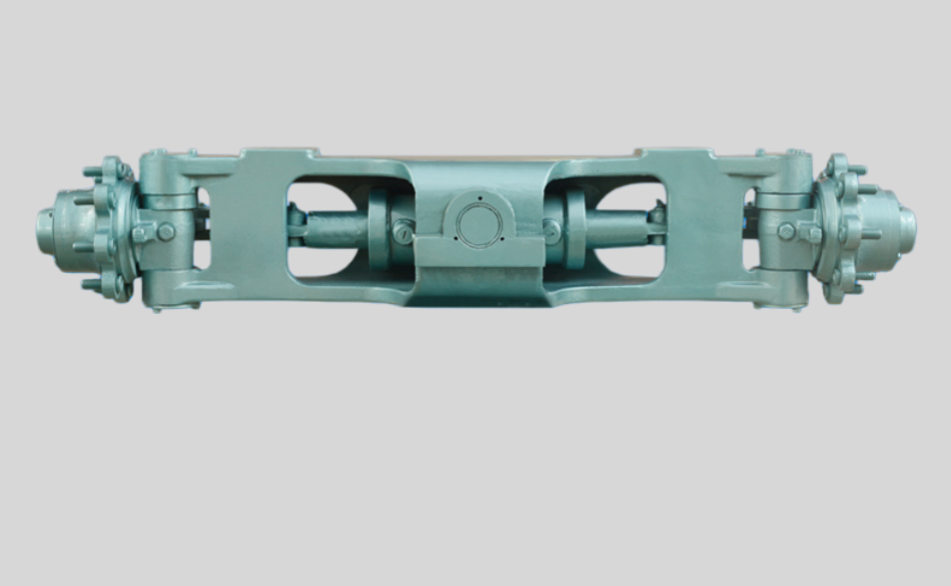

TES38 Forklift Steering Axle

Characteristics:
  • Suitable for 3-4 tons forklift.
  • Less steering deviation,larger steering angle,reach to 84°,57.31°.
  • Integral cast axle housing with sufficient rigidity.

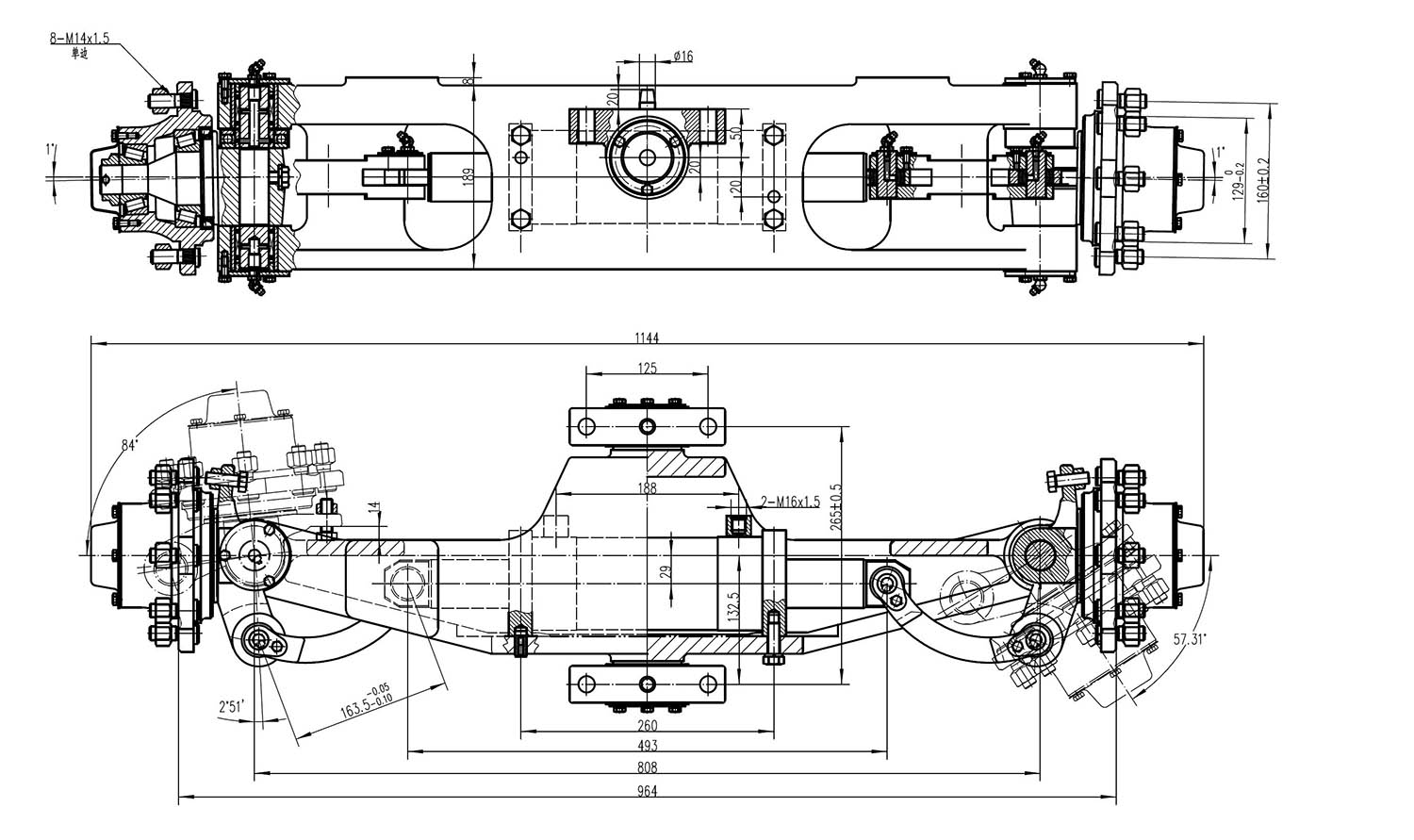

Main connection dimensions
Technical parameter

Model No.TES38
Inside Diameter of Steering Cylinderϕ80mm
Diameter of Piston Rodϕ50mm
Single Stroke81mm
Distance Between Two Neighboring Oil Inlets188mm
Inside Screw Thread of Oil Inlet2×M16×1.5
Steering Angle84° or 57.31°
