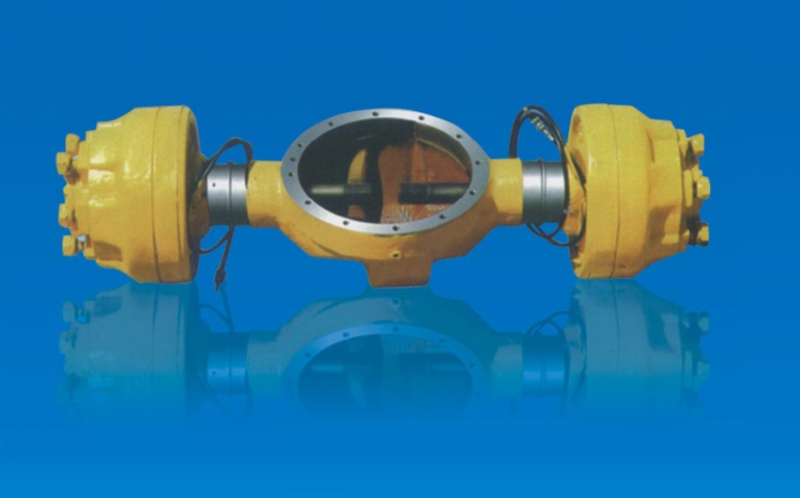

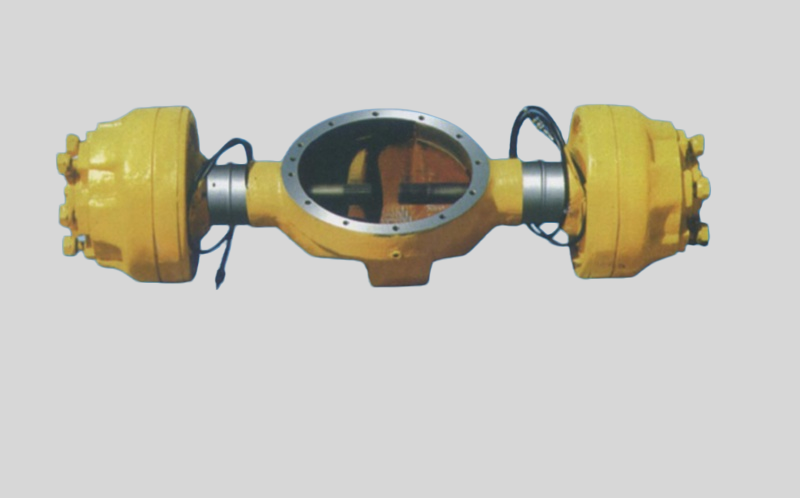

TED20 Forklift Drive Axle

Characteristics:
  • Suitable for 2 tons forklift.
  • TCM type forklift drive axle.
    Axle housing made of cast steel with adequate rigidity has great load-carrying capacity.
  • Shoe brake with small volume and light weight can realize reliable braking
  • and flexible operation.

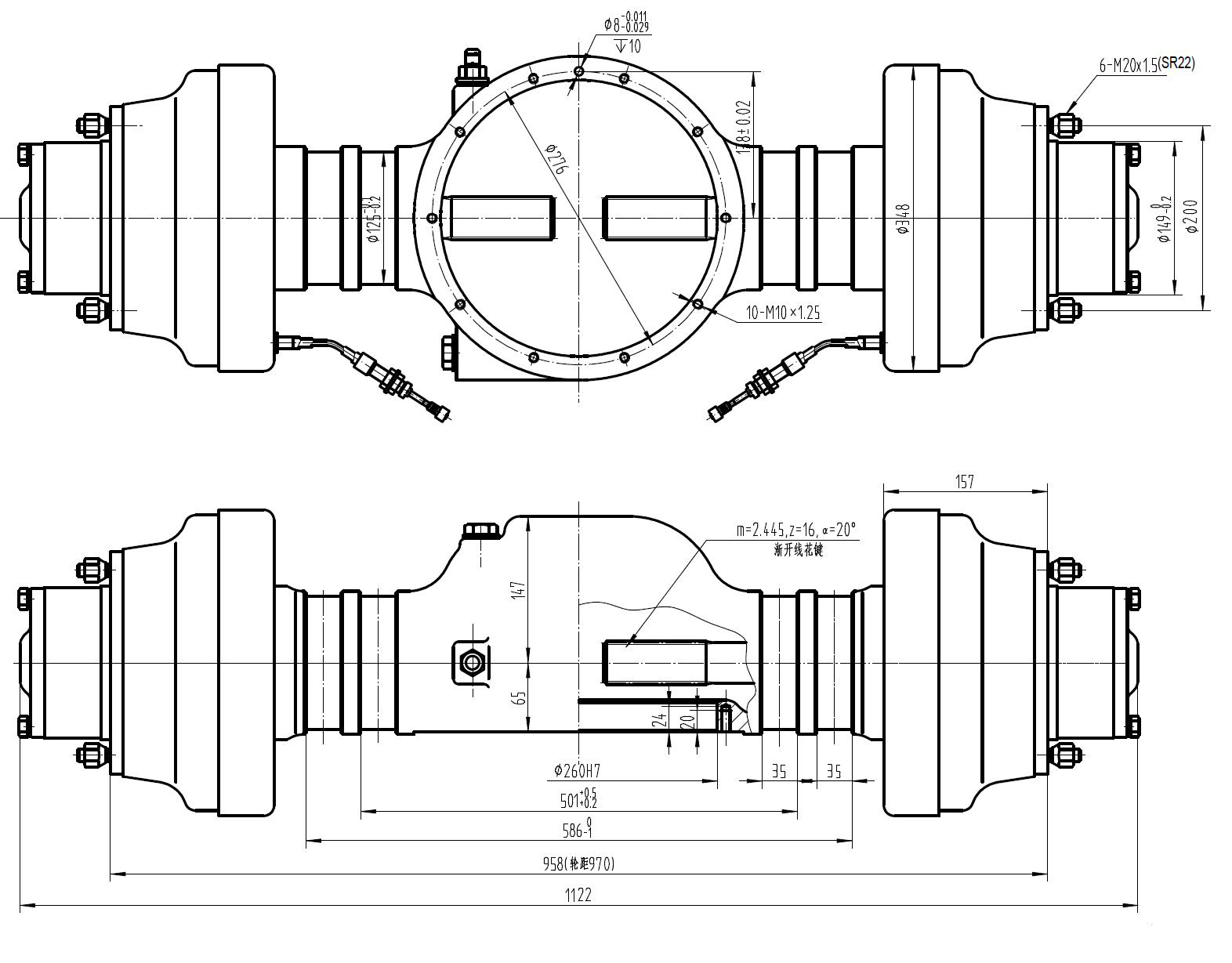

Main connection dimensions
Technical parameter

Model No.Brake SpecificationLength of Handbrake Wire
TED20ϕ310×60Left:1270mm
Right:1790mm
