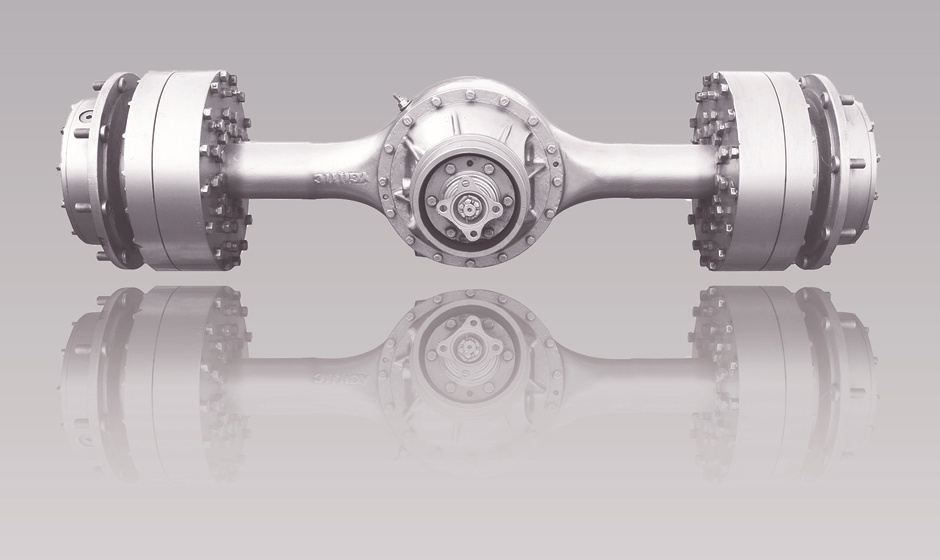

QWL16S / QWL18S Wheel Loader Drive Axle

Characteristics:
  • The brake in enclosed multi-disc wet-type braking mode,with braking hub,hydraulic pressing,spring release and excellent braking performnce,is installed behind the planetray hub decelerating-gears.
  • QWL16S suitable for the ZL16 wheel loader and the engineering machineries in similar conditions.
  • QWL18S suitable for the ZL20 wheel loader and the engineering machineries in similar conditions.

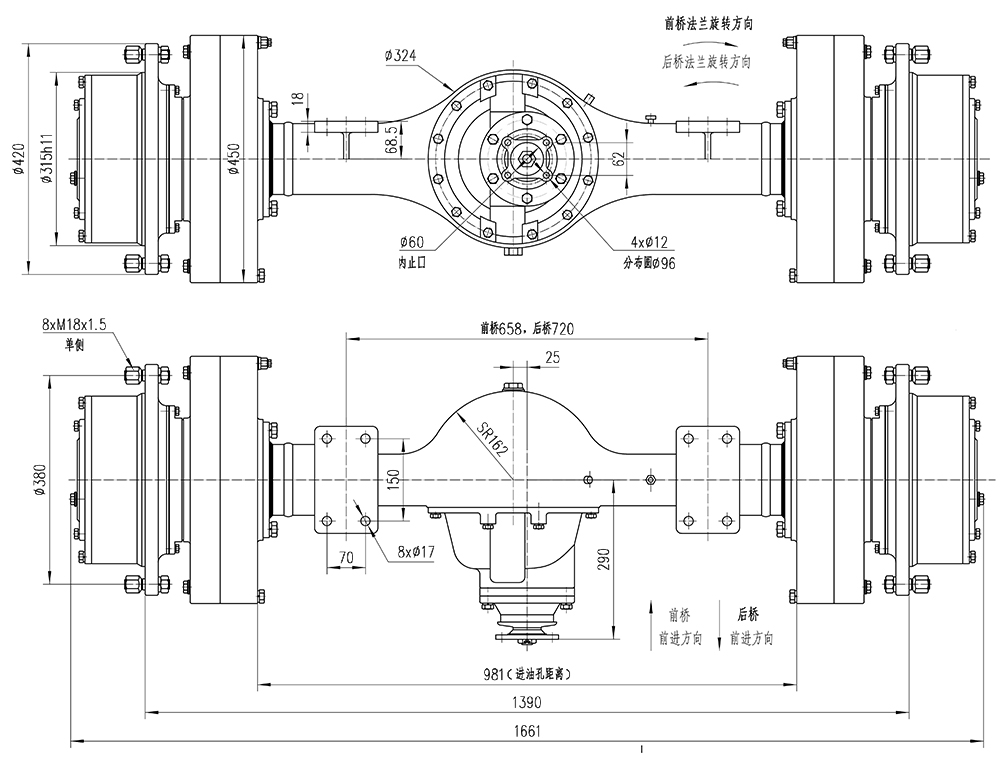

QWL16S main connection dimensions

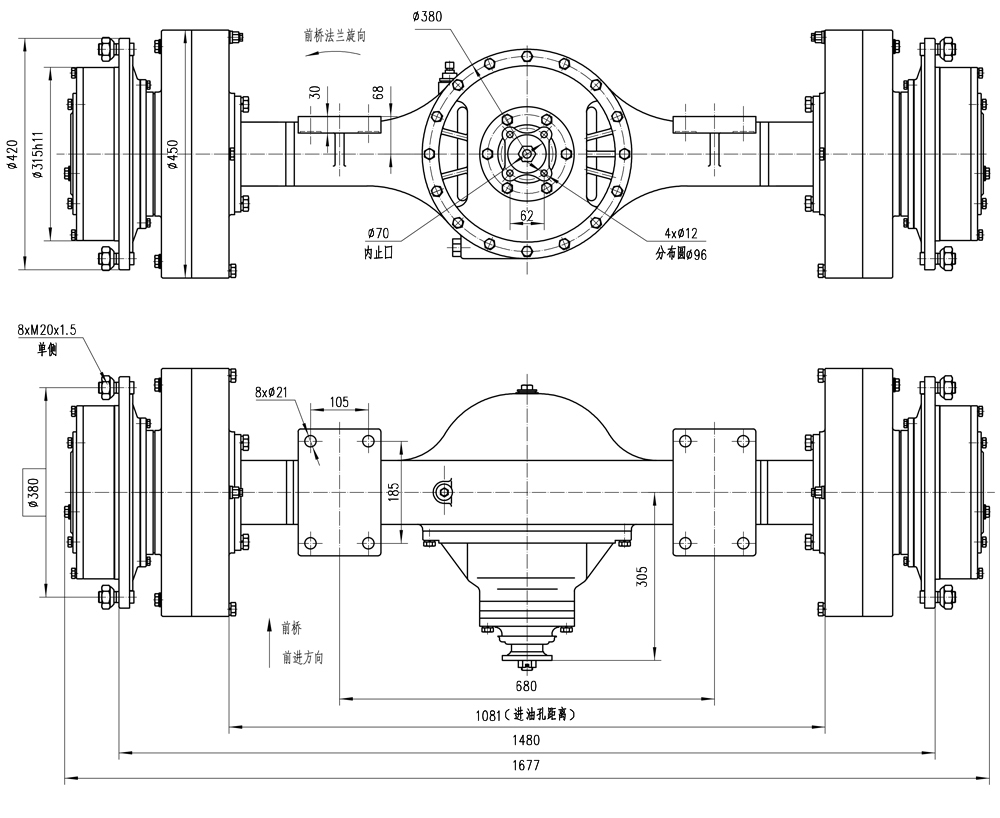

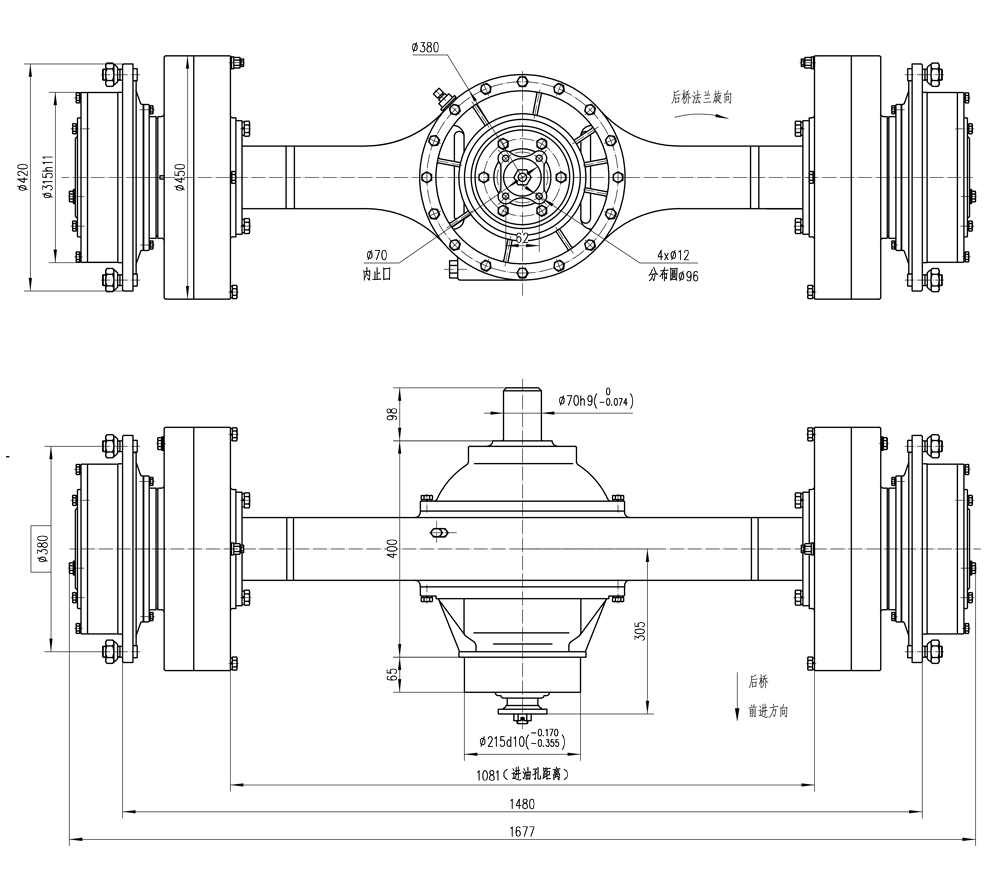

QWL18S main connection dimensions
Technical parameter

QWL16SQWL18S
Main reducer ratio5.8336.667
Transmission ratio at wheel4.43.23
Total transmission ratio25.66721.53
Maximum axle load7500Kg8500Kg
Maximum input torque785N.m900N.m
BrakeBraking pressure5.5MPa5.5MPa
Brake moment11000N.m/pce11000N.m/pce
