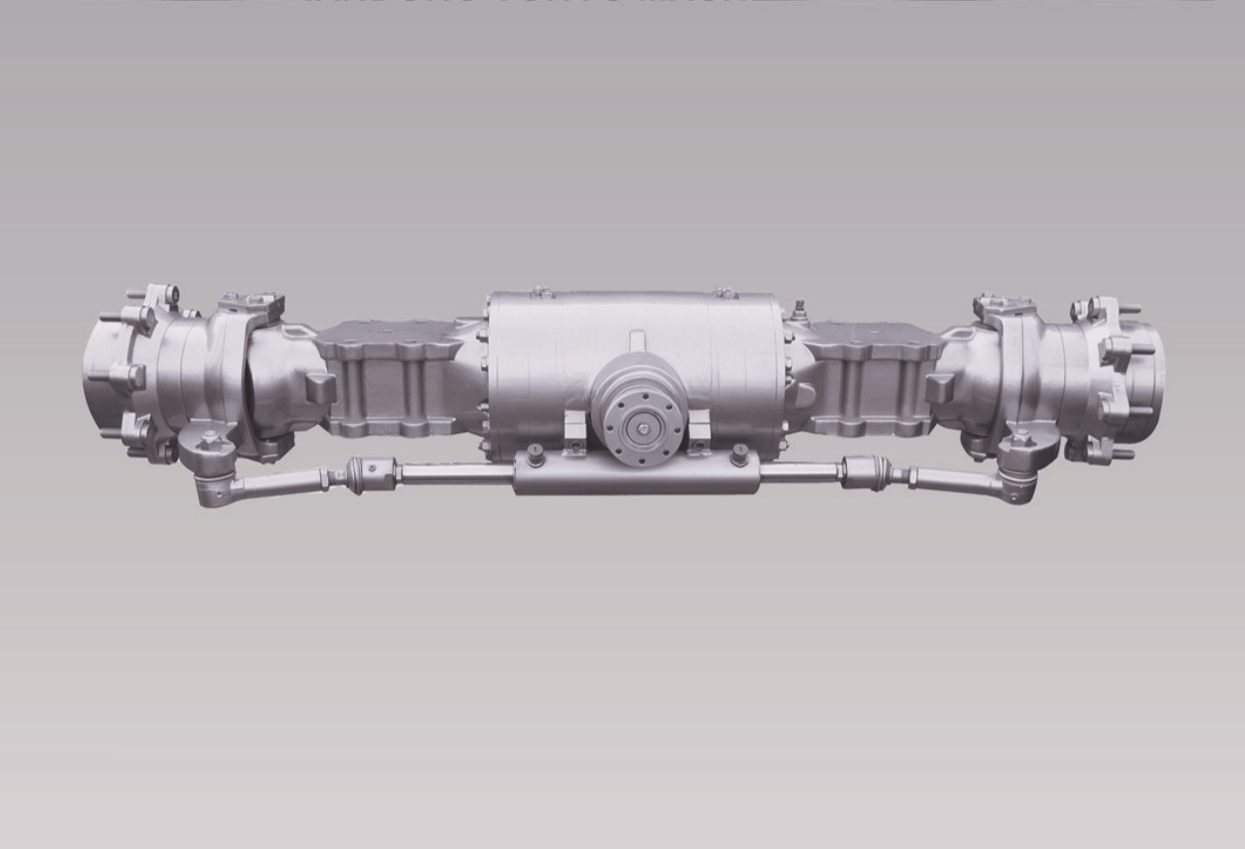

QWJ50 Series Drive Axle for Trackless Utility and Universal Vehicle

Main connection dimensions

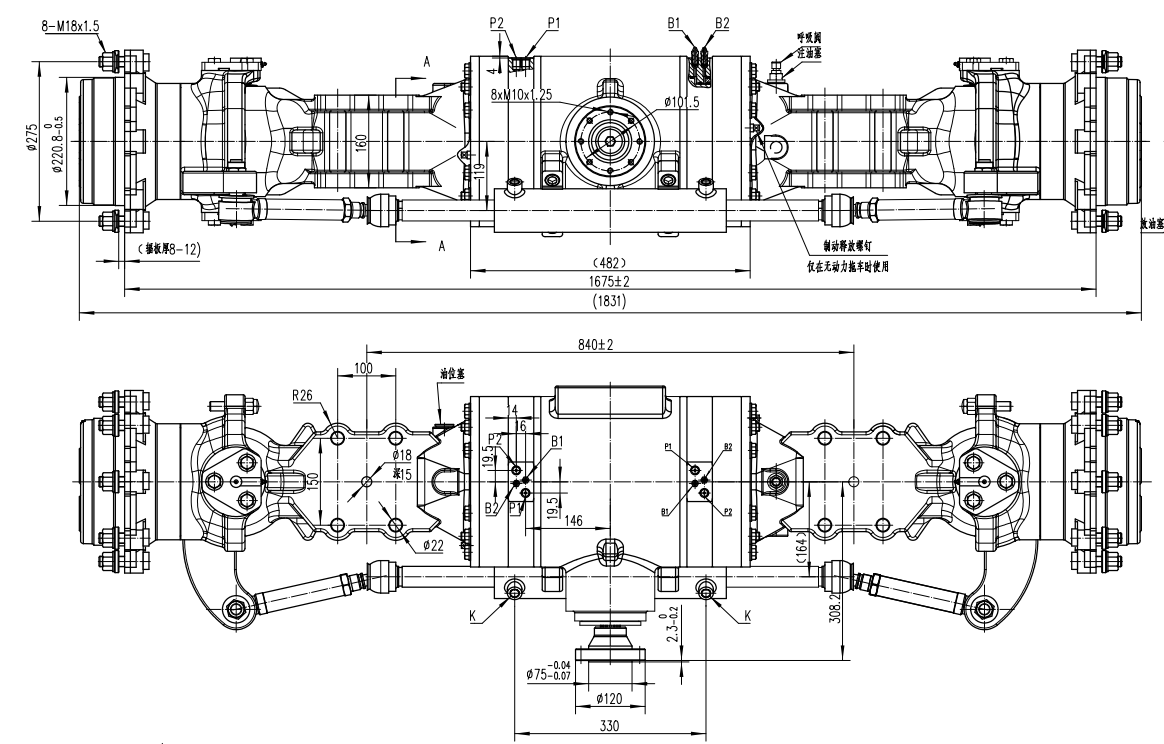

QWJ5Q Front Drive Axle

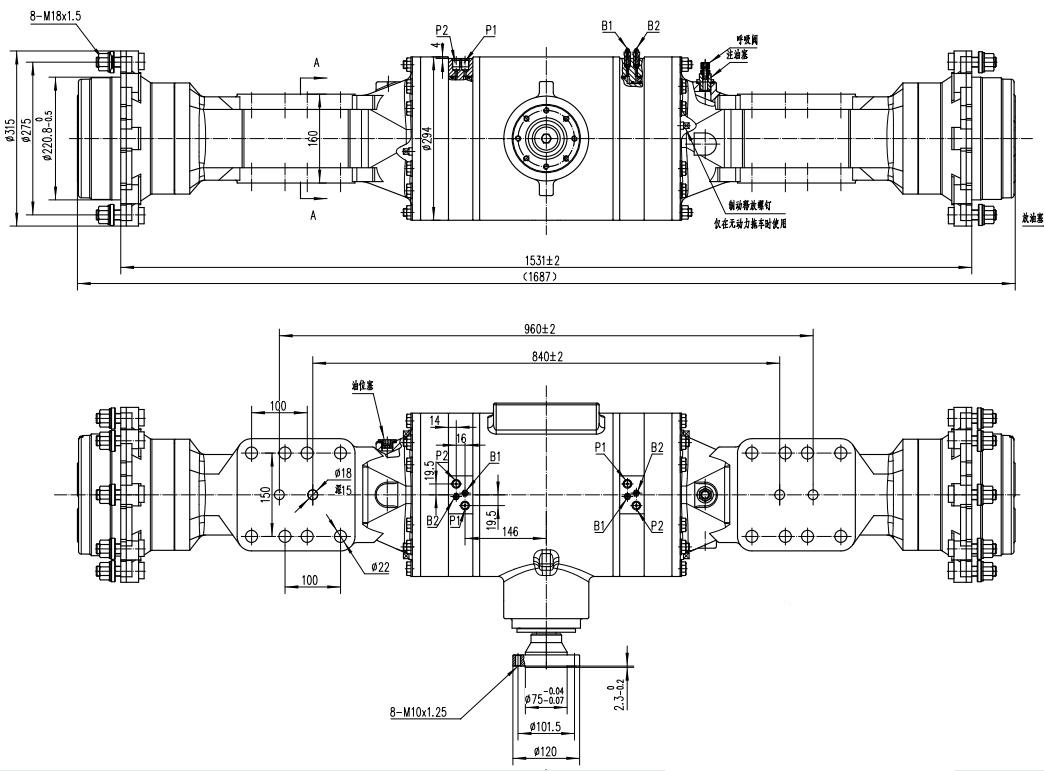

QWJ5H Rear Drive Axle
Technical parameter

Total speed ratio14
Main reducer speed ratio2.333
Wheel-end speed ratio6
Input torque1500N.m
Peak input torque2100N.m
Max input rotation speed3500 r/min
Brake torque20800N.m
