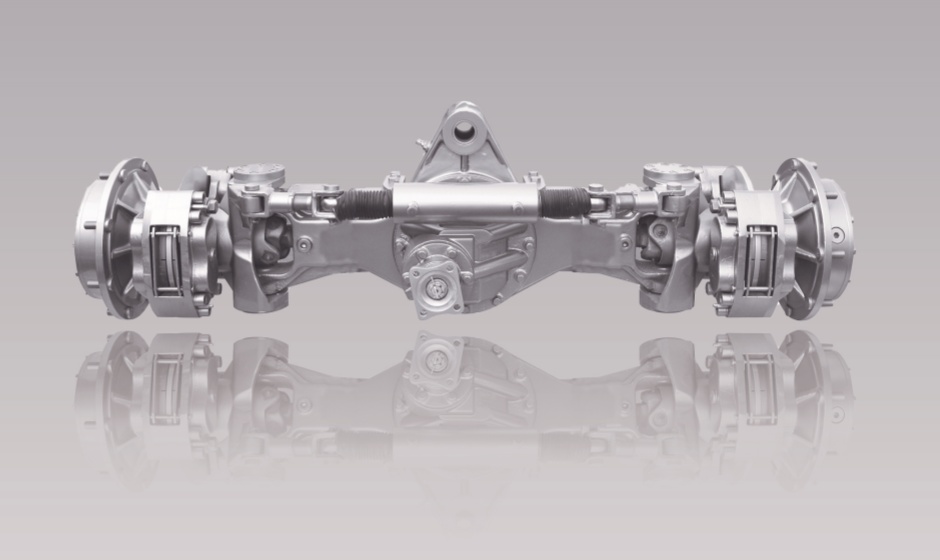

QWE96 Series Wheel Excavator Drive Axle

Characteristics:
  • Adopted the integral casting steel bridge shell,the rigidity is good.
  • Front axle steering.
  • The semi-axle is thickening and the transmission is more reliable.
  • Applicable to 10 ton wheel excavators.

Main connection dimensions

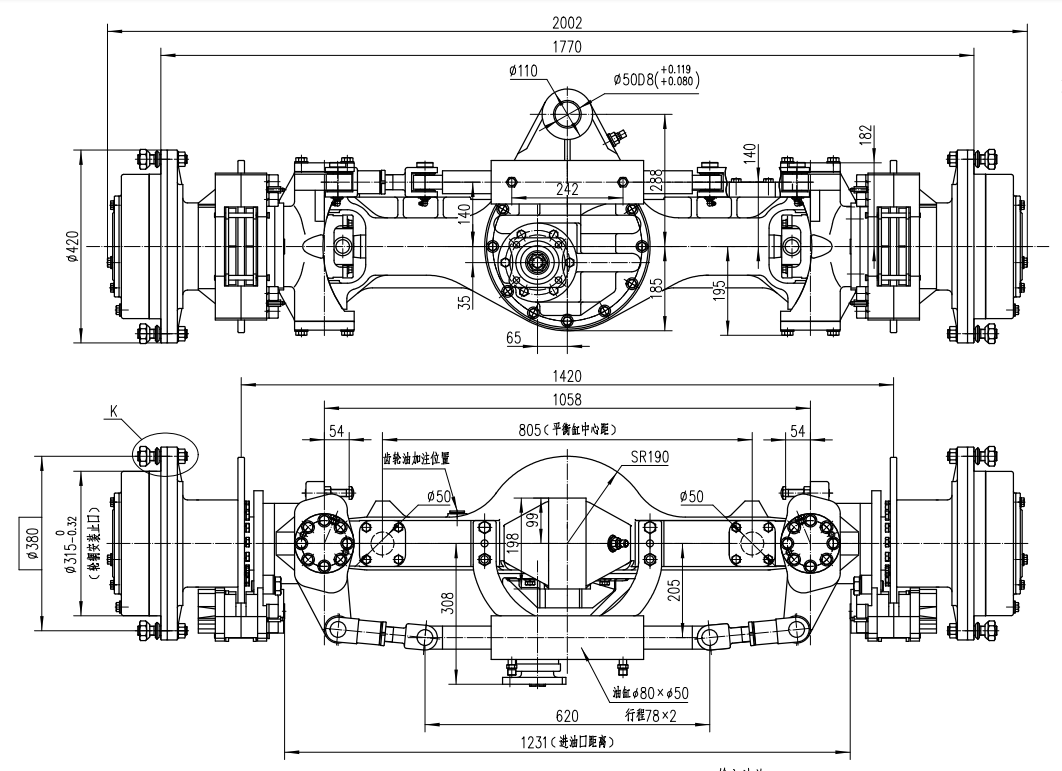

QWE96Q

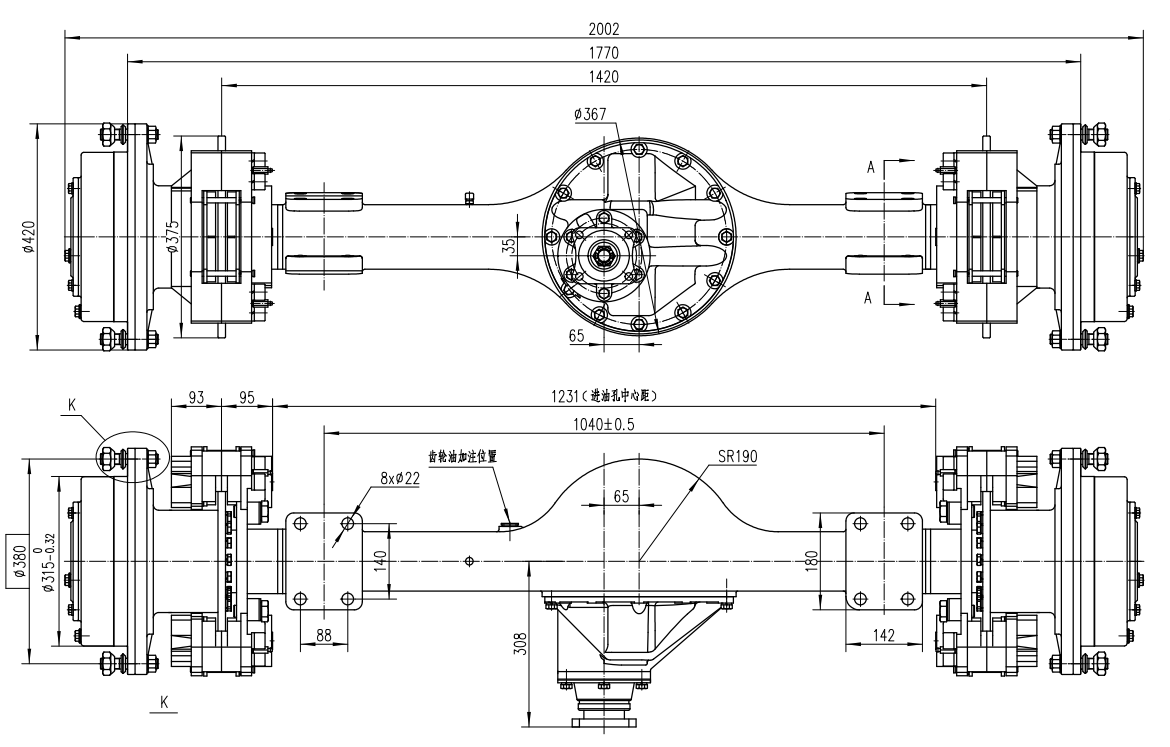

QWE96H
Technical parameter

QWE96QQWE96H
rated load6500Kg8500Kg
total speed ratio21.4521.45
max output torque16500N.m16500N.m
toe-in1-4mm
corner of sheep wheel28°
brake torque9200N.m per clamp9200N.m per clamp
brake pressure10MPa10MPa
