QWE86 Series Wheel Excavator Drive Axle

Characteristics:
  • Adopted the integral casting steel bridge shell,the rigidity is good.
  • Front axle steering.
  • The semi-axle is thickening and the transmission is more reliable.
  • Applicable to 9 ton wheel excavators.

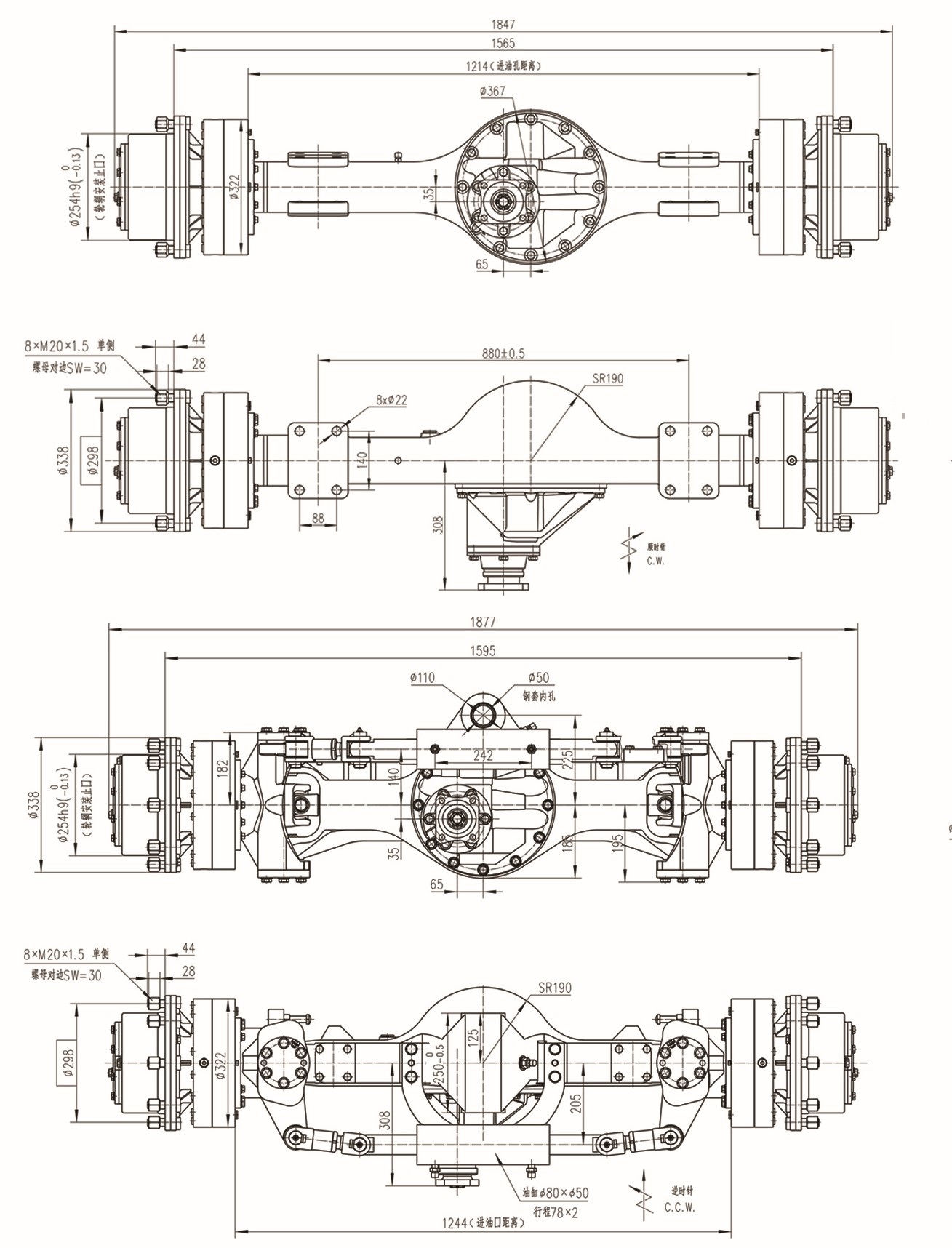

Main connection dimensions
Technical parameter

QWE86
rated load6500Kg
Total speed ratio17.727
Max output torque19500N.m
brake torque7900N.m per axle
brake pressure5MPa
