QWE80 Series Wheel Excavator Drive Axle

Characteristics:
  • Adopted the integral casting steel bridge shell,the rigidity is good.
  • Front axle steering,steering angle can up to 28°.
  • The semi-axle is thickening and the transmission is more reliable.
  • Applicable to 8 ton wheel excavators.

Main connection dimensions

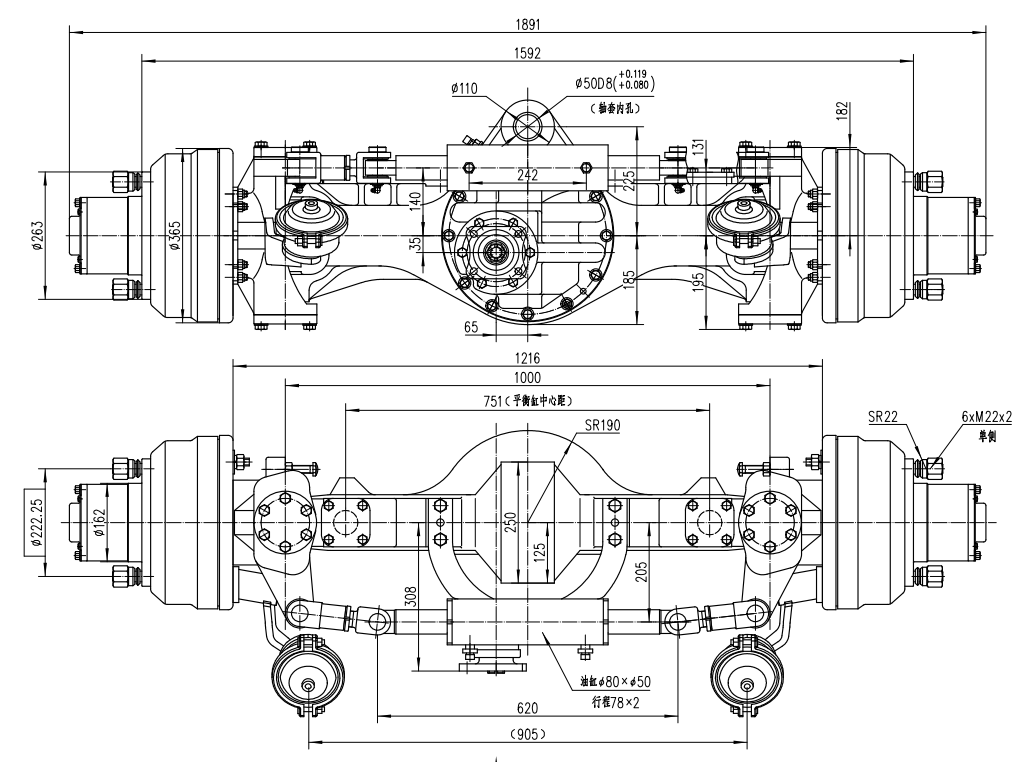

QWE80Q1

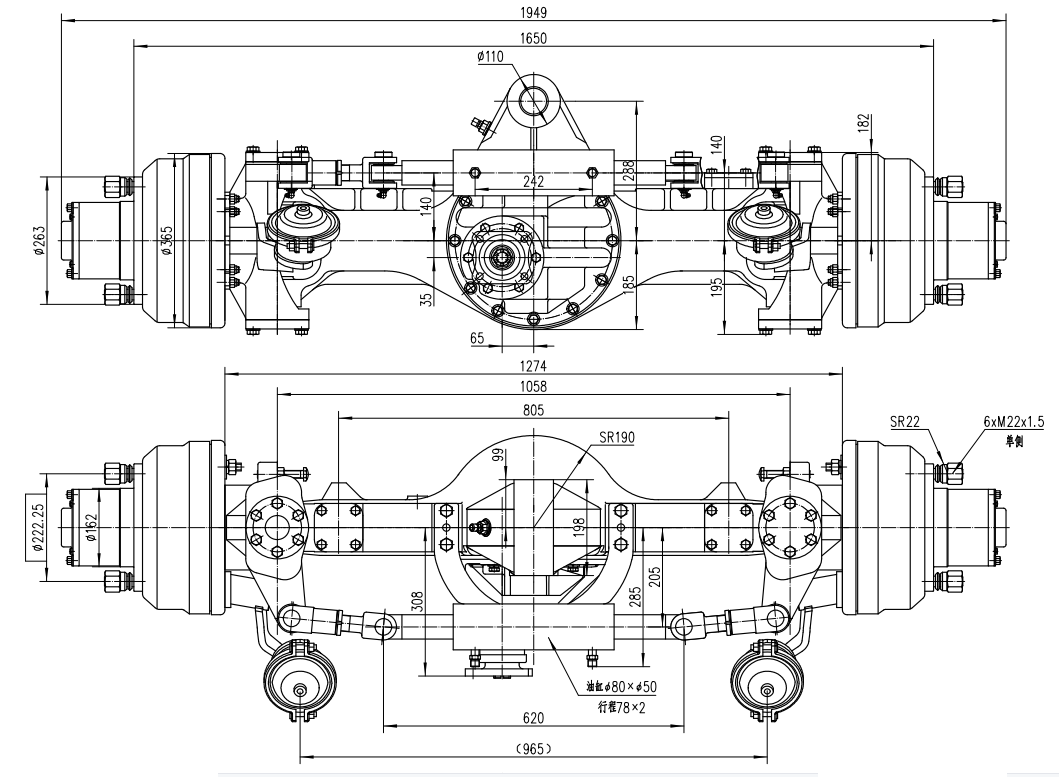

QWE80Q2

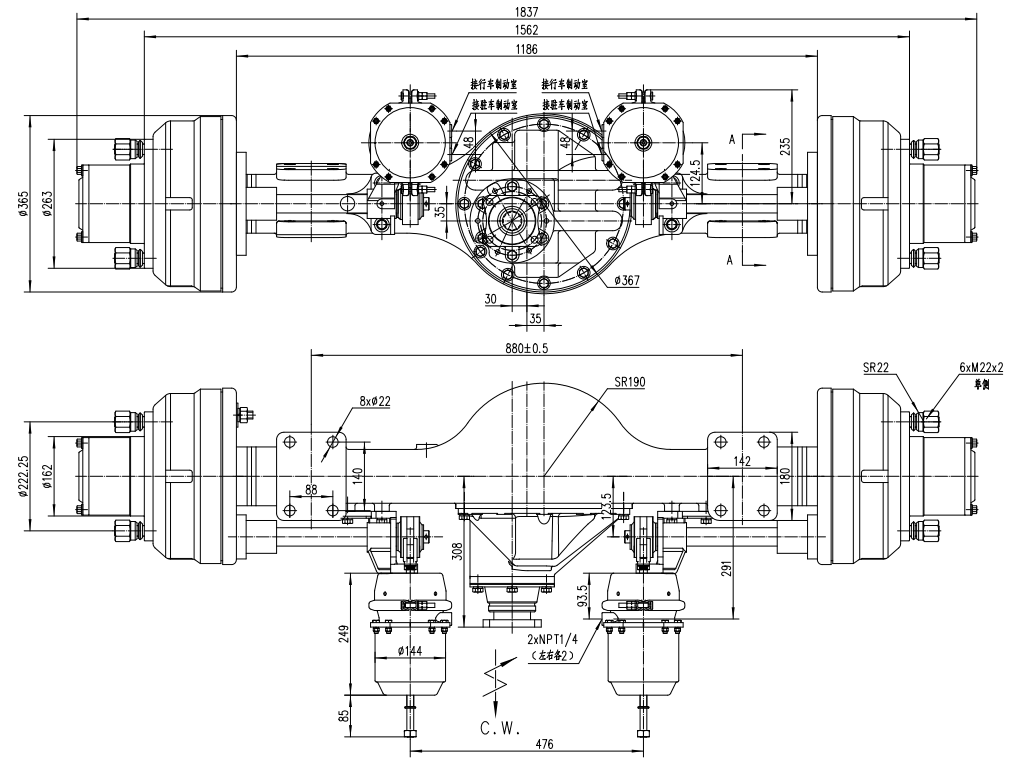

QWE80H1
QWE80H2
Technical parameter

QWE80Q1 / QWE80Q1QWE80H1 / QWE80H1
rated load4000Kg5000Kg
speed ratio of the main reducer6.167（37/6）6.167（37/6）
max output torque11200N.m11200N.m
toe-in1-4mm
corner of sheep wheel28°
braking wayAir brakeAir brake
brake specificationФ320×95Ф320×95
brake pressure0.6～0.8MPa0.6～0.8MPa
