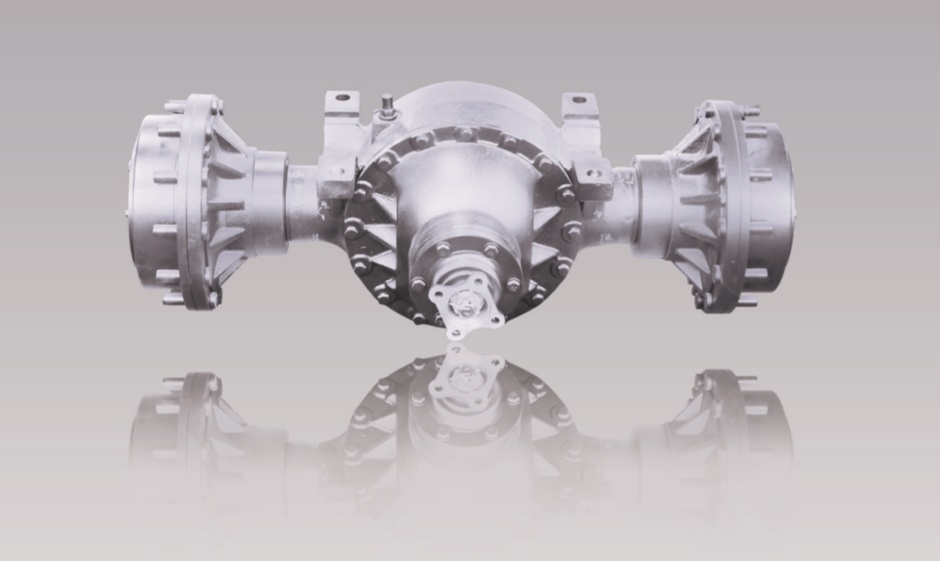

QUE15 Series Underground Wheel Loader Drive Axle

Characteristics:
  • Two-stage decelerating mechanism is adopted for the drive axle.the spiral bevel gear deceleration and wheel planetary reduction mechanism,input torque,high transmission efficiency.
  • The drive axle is with small tread,wheel track,wheel tread,applicable for underground equipments such as underground carry-scraper.

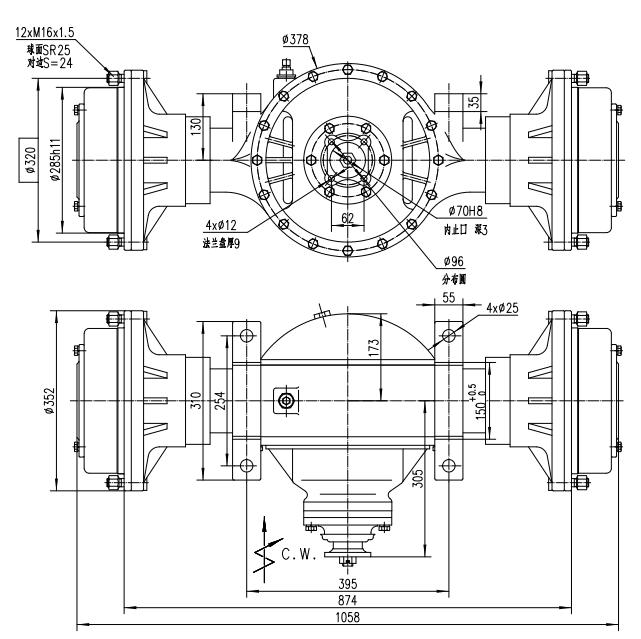

Main connection dimensions
Technical parameter

Main reduer speed ratioWheel hub speed ratioTotal speed ratioAxle loadMax inout torque
6.6673.11120.7418500kg900N.m
