QCQ30L Forklift Drive Axle

Main Characteristics
  • QCQ30L is composed of two-stage reductions (a pair of cylindrical gears and a pair of spiral bevel gears), differential, differential seat (axle housing), hub and brake.

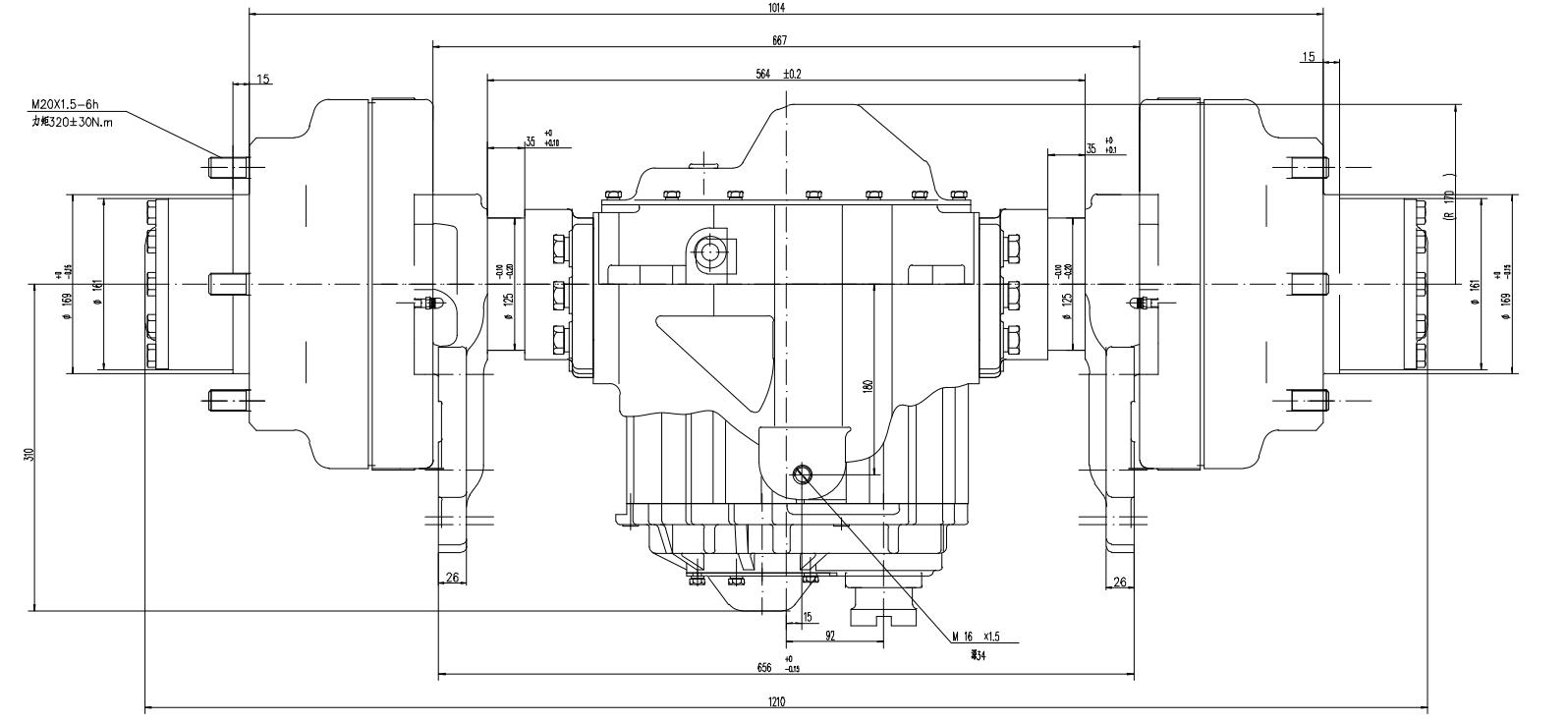

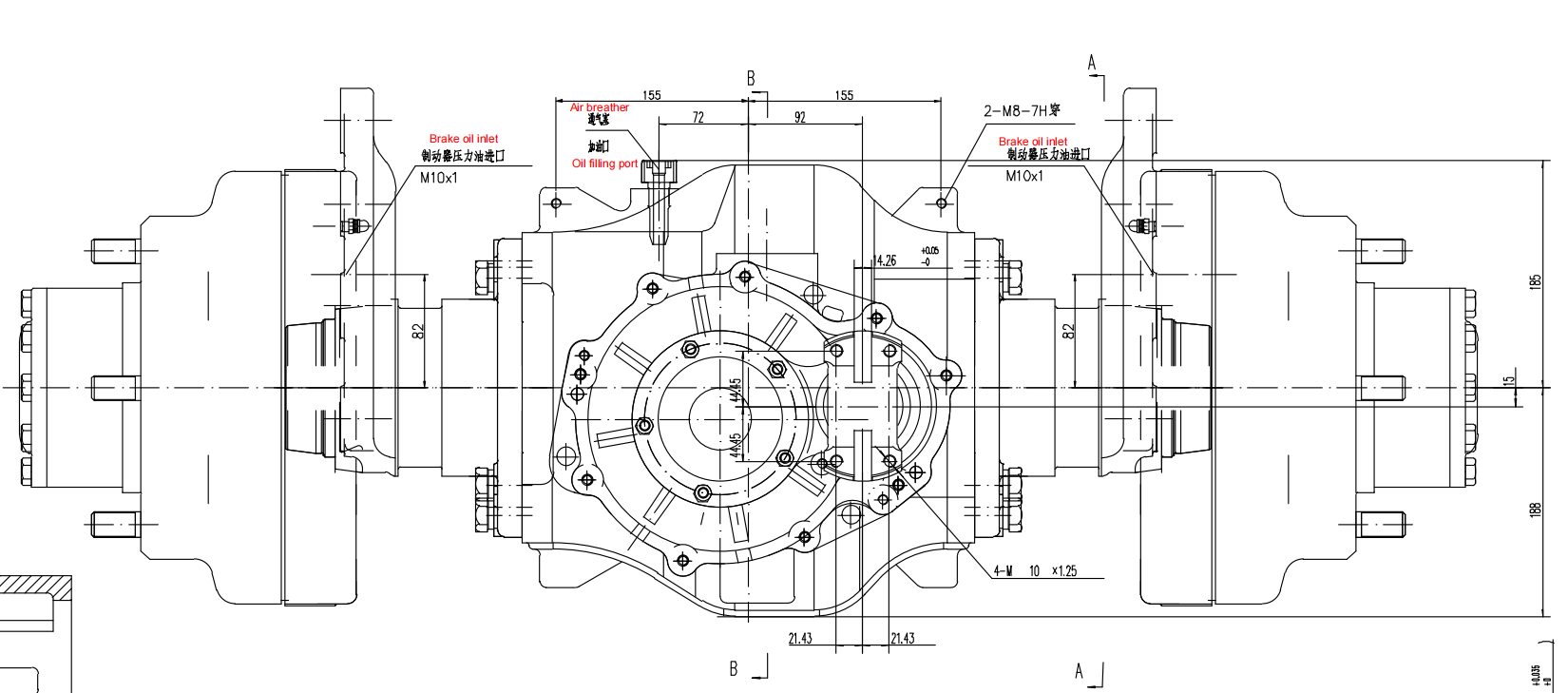

Main connection dimensions
Technical parameter

ModelQCQ30L
Max Input Torque N.m780
Rated Static Load kgs7,160
Transmission Ratio14
Brake Type/ Size mmDrum brake / Φ314
Brake cylinder diameter/ Brake stroke mmΦ28.5/3
Brake mediumDOT3 or DOT4 brake liquid
Working Temperature ℃-40 ~120
Brake Torque N.m / Brake pressure Mpa3800 / 7
The clearance between disc and brake drum mm0.25~0.4
Working OilGL-5/85W-90 Axle assembly is without gear oil
Input shaft direction when F(face to input flange)Counter Clock wise
Size / L x W x H mm1210x498x417
Oil Volume L30.55
Driving Axle OilMobil 424
Net Weight(without oil) kgs326
