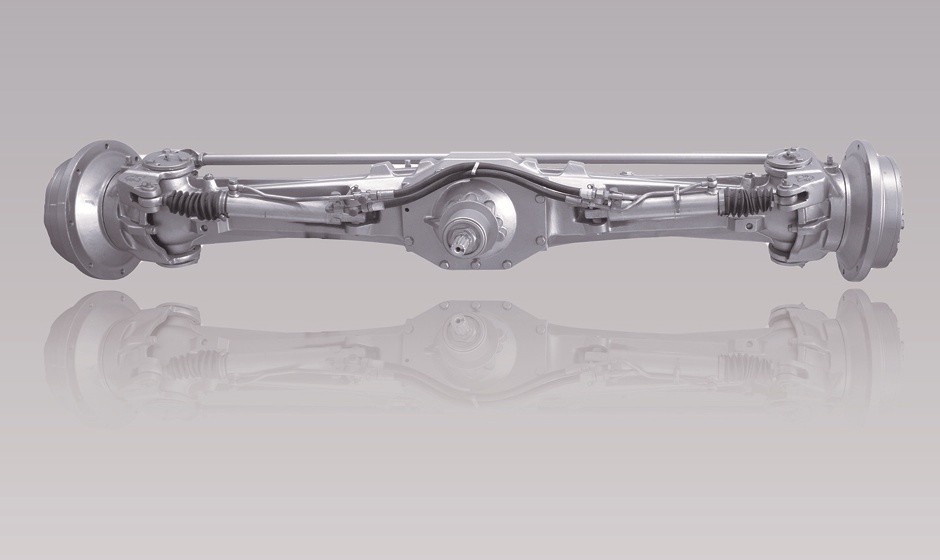

QATD60-160 Series Farm Tractor Front Drive Axle

Characteristics:
  • Two-stage decelerating structure is adopted for steeringdrive axle.universal joint rotating at constant angular velocity is adopted to connet the inner semi shaft withthe drive shaft.with the drive shaft.
  • Integral-type ductile-iron axle housing with adequaterigidity and light weight is adopted.
  • Centrally positioned transmission shaft and swing-typecentral swing pin are adopted.
  • Front-wheel steering solely under hydraulic pressure,the steering angle can reach 50°.
  • Suitable for 120 horsepower four-wheel drive tractorand similar products.

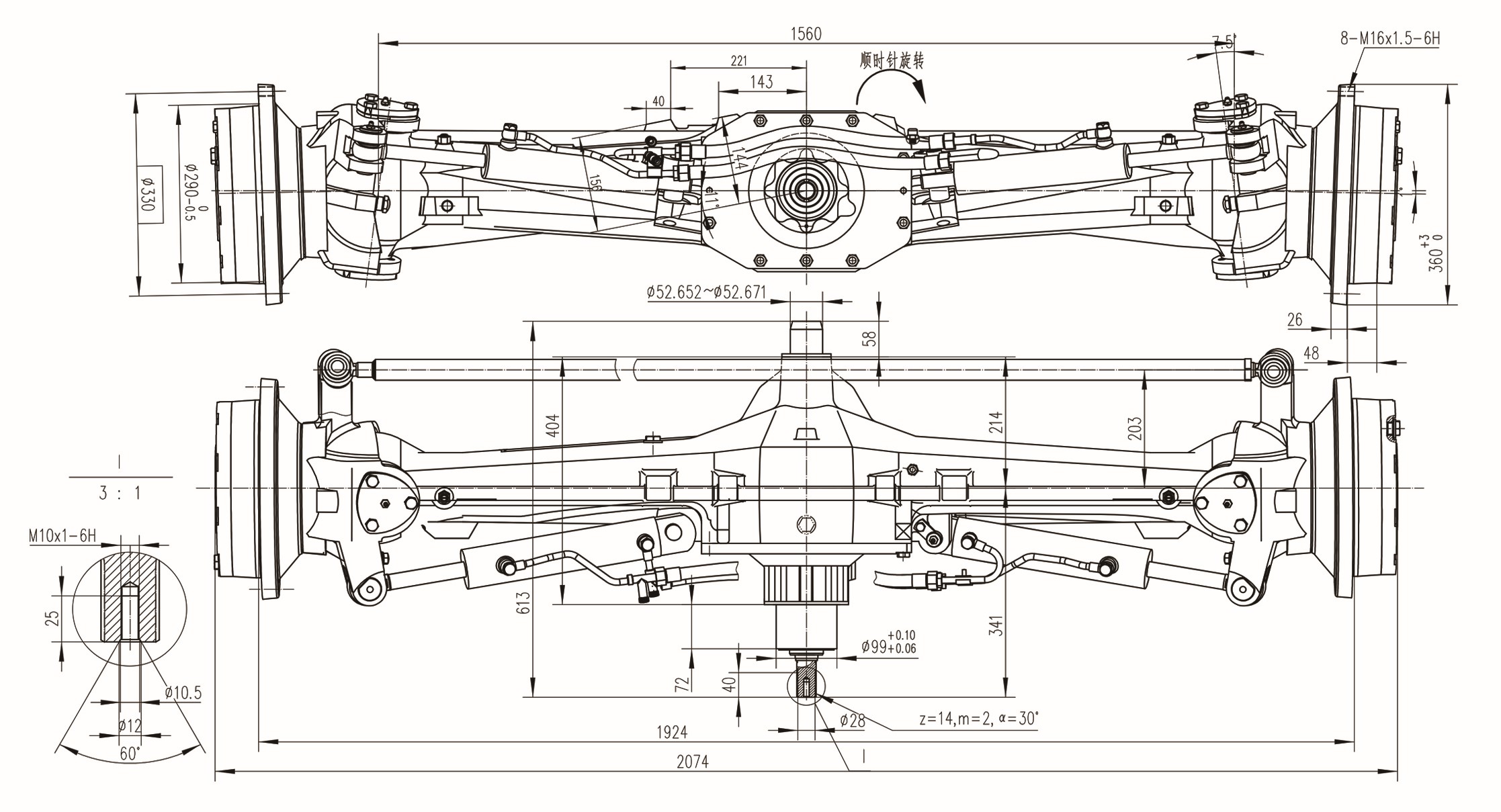

Main connection dimensions
Technical parameter

Maxium input torque456N.m
Transimssion ration16.264/17.727/17.92
Front-wheel positioningFront-wheel camber angle1。
Kingpin incl ination angle7。30"
Kinpin caster angle10。
Toe-in of front wheel0-5mm
Steering typeIndepent oil-wey,front-Wheel steering solely under hydraulic pressure
Oscillative angle of front axle11。（Each side）
Maximum steering angle of front wheel50°， Able to reach 45°through adjustment 40°
Diameter of steering oil cylinderФ48
Stroke of steering oil cylinder200mm
Maximum allowable pressure for steering cylinder20MPa
Maximun load-carrying capacity3500Kg
Net weight300Kg
Spline parametersZ=14，m=2,a=30。
